Trimble EZ-Guide® 250

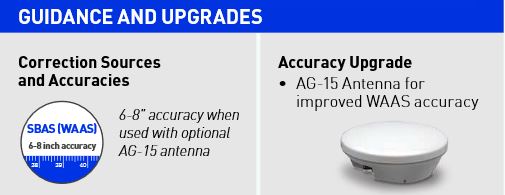

The Trimble EZ-Guide 250 display provides high-quality, entry-level guidance capabilities at an entry-level price for tractors, combines, sprayers, and other farm equipment. It is well-suited for broadacre crop applications with the standard sub-meter GPS antenna or upgrade to 6-8″ pass-to-pass accuracy using the optional AG-15 antenna. Perform manual guidance or add a steering system to make your farming operations easier – day or night.

Display Features

  • Compact 4.3″ color display
  • One-touch function buttons
  • Intuitive user-interface
  • USB data transfer
  • Integrated GPS receiver

Guidance and Mapping

Comparison Chart

Here is how the Trimble EZ-Guide 250 compares to some other popular displays:

Features XCN-2050 ™ XCN-1050 ™ FM-750 ™ EZ-Guide 250
Screen Size 12.1" (30.8cm) 10.1" (25.6cm) 8.0" (20.3cm) 4.3" (10.9cm)
Video Camera Inputs 1 1 2 None
Built-In GPS Receiver Yes Yes* Yes Yes
Built-In Bluetooth No Yes No No
Built-In WiFi No Yes No No
GLONASS Compatibility Standard Standard Upgrade N/A
Automated Steering Yes Yes Yes No
Autopilot™ Motor Drive Yes Yes Yes No
Assisted Steering Yes No Yes Yes
Row Guidance Yes No No No
Implement Guidance Yes No No No
ISOBUS Universal Terminal Yes Yes No No
ISOBUS Task Controller Yes Yes No No
ISOBUS Multi Product Control No Yes No No
Serial / TUVR Support Yes Yes Yes No
Variable-Rate Application Yes Yes Yes No
Automatic Section Control Yes Yes Yes No
Boom Height Control for Sprayers No No Yes No
Seed Monitoring Yes No Yes No
Water Management Yes No No No
Yield Monitoring Yes No Yes No
Trimble App Central Yes Yes No No
Vehicle Sync Yes No No No
NextSwath End-of-row Turn Yes Yes** No No
*In the NAV-900 **Not at initial release

This is an All-Makes Compatible Product:

For more information about the Trimble EZ-Guide 250, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
