Description
Product

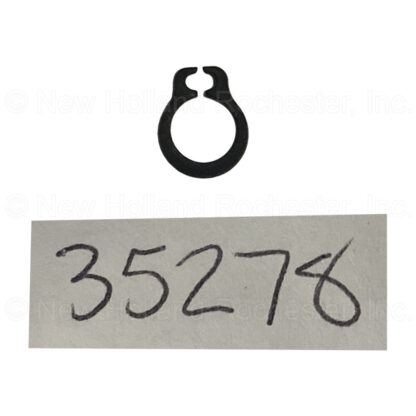

External Snap Retaining Ring: 0.588″ Groove Dia, 5/8″ Shaft Dia, 1060-1090 Spring Steel, Phosphate Finish
Specifications
| Ring Type | Snap |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Shaft Diameter (Inch) | 5/8 |
| Shaft Diameter (mm) | 15.88 |
| Groove Diameter (Decimal Inch) | 0.5880 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Material | Spring Steel |
| Free Diameter (Decimal Inch) | 0.5790 |
| Free Diameter Tolerance (Decimal Inch) | -0.0100 to 0.0050 |
| Free Outside Diameter (Decimal Inch) | 0.9000 |
| Military Specification | Does Not Meet Military Specifications |
| Material Grade | 1060/1090 |
| Hardness | 66-71 HRC |
| Finish | Phosphate |
| Standards | ISO 13485.2015; SAE 1060-1090; UNS G10600-G10900 |
| Inside Diameter (Decimal Inch) | 0.5790 |
| Groove Width (Decimal Inch) | 0.0390 |
| Groove Width Tolerance (Decimal Inch) | 0.0000 to 0.0030 |
| Groove Depth (Decimal Inch) | 0.0180 |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Ring Thickness Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Meets Specification | Yes |
| UNSPSC Code | 31163202 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
| Manufacturer’s Part Number | SH-62ST PA B100 |
| System Of Measurement | Inch |
| Finish Coating | Phosphate |
