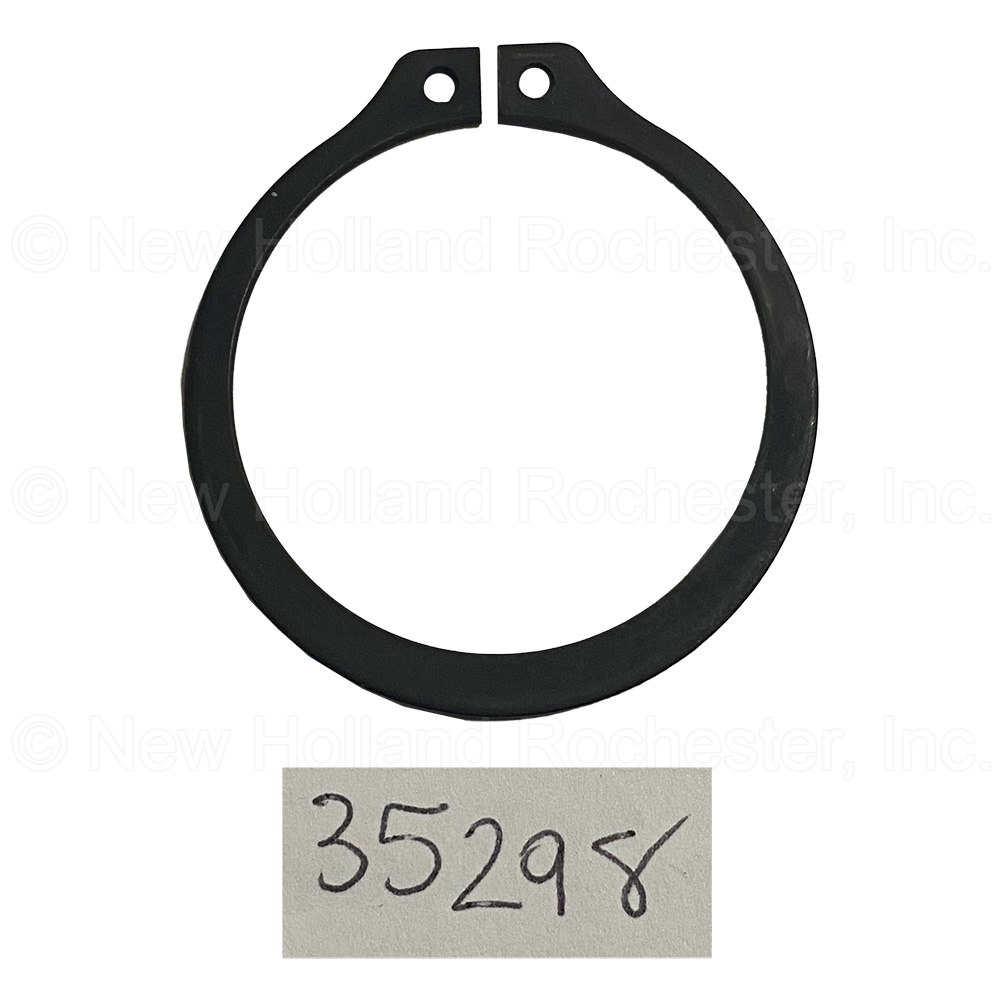

1.35″ Groove Dia External Retaining Snap Ring Part # 35298

$1.47

Only 10 left in stock

Add to Wishlist
SKU: 35298 Category:

Description

Product

External Retaining Ring: 1.35″ Groove Dia, 1.438″ Shaft Dia, 1060-1090 Spring Steel & Stainless Steel, Phosphate Finish

Specifications

Shaft Diameter (Decimal Inch) 1.4380
Groove Diameter (Decimal Inch) 1.3500
Groove Diameter Tolerance (Decimal Inch) -0.0040 to 0.0040
Material Stainless Steel; Spring Steel
Free Diameter (Decimal Inch) 1.3330
Free Diameter Tolerance (Decimal Inch) -0.0150 to 0.0100
Free Outside Diameter (Decimal Inch) 1.4560
Military Specification Does Not Meet Military Specifications
Material Grade 1060/1090
Finish Phosphate
Nominal Size 1-7/16
Inside Diameter (Decimal Inch) 1.3330
Groove Width (Decimal Inch) 0.0560
Groove Depth (Decimal Inch) 0.0440
Ring Thickness (Decimal Inch) 0.0500
UNSPSC Code 31163202
System Of Measurement Inch
Finish Coating Phosphate
