| Item |

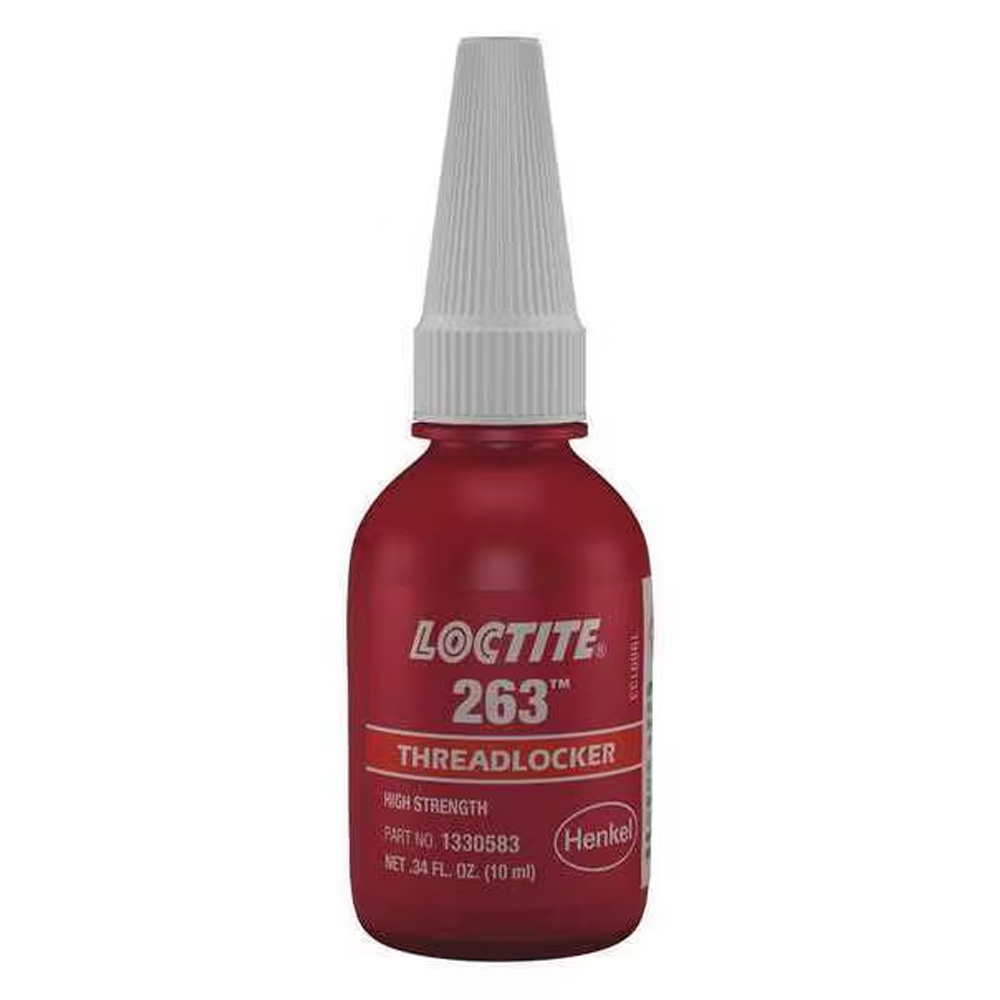

Primerless High-Strength Threadlocker |
| Threadlocker Color |
Red |
| Threadlocker Container |
Bottle |
| Color |
Red |
| Threadlocker Strength |
High |
| Physical Form |
Liquid |
| Container Type |
Bottle |
| Compatible Materials |
Aluminum, Brass, Bronze, Copper, Iron, Manganese, Nickel, Plated Metal, Steel, Zinc |
| Cure Type |
Anaerobic |
| Temp. Range |
-65.0 °F – 360.0 °F |
| Begins to Harden |
10 min |
| Threadlocker Disassembly |
Permanent |
| Flash Point |
212 Degrees F |
| Series |
LOCTITE 263 |
| Standards |
California Proposition 65, CEPA DSL/NDSL, CERCLA/SARA 311, CERCLA/SARA 312, CERCLA/SARA 313, OSHA 29 CFR 1910.1200, TSCA |
| Specific Gravity |
1.1 |
| Threadlocker Classification |
Primerless Threadlocker |
| Gap Fill |
0.007 in |
| Application |
Threadlocking |
| Chemical Type |
Anaerobic |
| Removable With |
Heat and Hand Tools |
| Full Cure |
24 hr |
| Viscosity |
500.0 mPa·s |
| Green Certification or Other Recognition |
NSF/ANSI 61 |
| Breakaway Torque |
290 in-lb |
| Recommended Surface Preparation |
Dry Surface |
| Minimum Viscosity |
400 cps |
| Maximum Viscosity |
600 cps |
| Storage Requirements |
8 Degrees to 21 Degrees C |
| Prevailing Torque |
290 in-lb |
| Threadlocking Strength |
High |
| VOC Content Weight Percentage |
0.36 % |
| Removal Method |
Hand Tool and Heat |
| Chemical Base |
Dimethacrylate |
| Full Cure Time |
1 day |
| Working Time Range |
6 min to 10 min |
| Minimum Operating Temperature |
-65 Degrees F |
| Shear Strength |
1,305 psi |
| Mixing Required |
No |
| Working Time |
10 min |
| Threadlocker Properties |
Oil Tolerant, Primerless |
| Breakaway Torque Range |
201 in-lb to 300 in-lb |
| Product Form |
Liquid |
| Brand & Series |
LOCTITE 263 |
| Torque and Strength |
290 in-lb High |
| Clean Up Method |
Solvent, Wire Brush |
| For Material Type |
Aluminum, Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Plated Metals, Stainless Steel, Steel, Zinc |
| Properties & Color |
Oil Tolerant Red, Primerless Red |
| Threadlocking Properties |
Oil Tolerant, Primerless |
| Maximum Operating Temperature |
360 Degrees F |
| Characteristics |
Disassembly Disassembly with Heat,Fluorescent,General Purpose,Oil Tolerant,Primerless,Strength High Strength |
| For Use With |
Metal,Metal Passive Metal |
| Cure type |
Anaerobic Cure |
| Specific gravity |
1.1 kg/m3 |
| Breakaway torque |
33.0 N·m |
