New Holland ISOBUS Product Control

New Holland PLM ISOBUS Product Control gives you the power to view your implement on your ISO-compliant display via a virtual terminal and control your implement’s necessary functions at the touch of a finger. PLM ISOBUS Product Control is compatible with many ISO-enabled displays and supports a variety of field applications, making it a great solution for the mixed fleet grower.

Features and Advantages

  • Installs in minutes
  • Easy user interface
  • One-time setup
  • Settings automatically transfer from machine to machine
  • Plug n’ play with your existing ISOBUS-compliant display
  • Ability to perform variable-rate, section control, prescriptions, and as-applied mapping

ISOBUS Product Control Platforms

  • Dry spreader
  • Liquid fertilizer / anhydrous ammonia
  • Slurry
  • Sprayer
  • Weather station

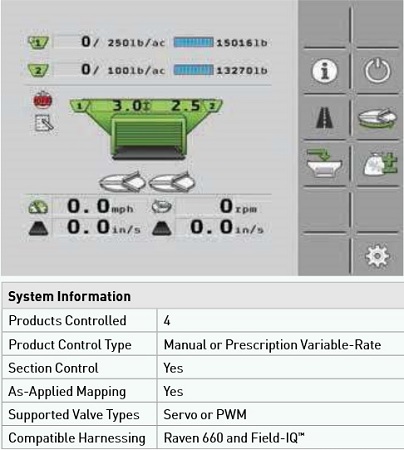

Dry Spreader Application:

Whether you want to utilize variable-rate capabilities or control your rate manually, this intuitive interface has everything you need to accurately and easily manage your spreader application.

Viewable Parameters

  • Dual bin actual/target application rate
  • Gate heights and spinners on/off
  • Ground speed, belt speeds, and spinner RPM

Additional Functionality

  • Spinner/fan control
  • Distributor control
  • Application counters
  • Bin chaining
  • Bin level (2/bin)

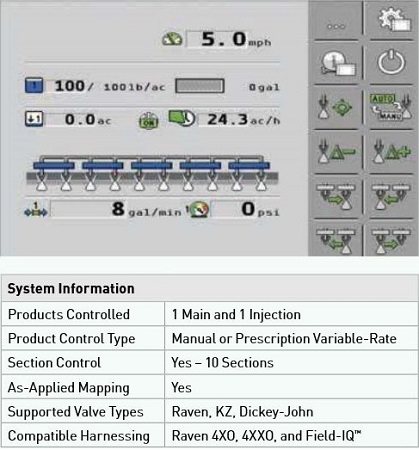

Liquid Fertilizer and Ammonia Application System:

Cover more ground with less fertilizer with the section control and variable-rate capabilities of the liquid fertilizer application system.

Viewable Parameters

  • Speed
  • Actual rate and gallons remaining
  • Acres to empty and area/hour

Additional Functionality

  • Liquid injection
  • Application counters
  • Tank level (liquid only)

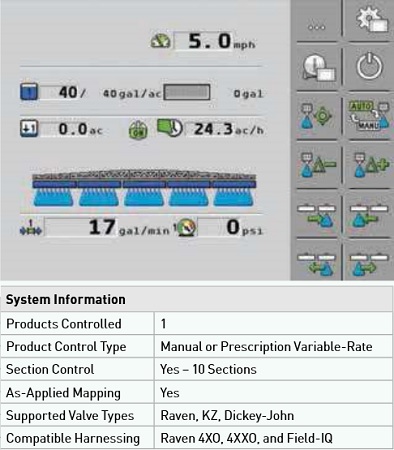

Sprayer Application System:

The Sprayer Application System provides a live view of your sprayer’s performance with up to 10 boom section control for manual or variable-rate application.

Viewable Parameters

  • Speed
  • Actual rate and gallons remaining
  • Acres to empty and area/hour
  • Flow rate

Additional Functionality

  • Application counters

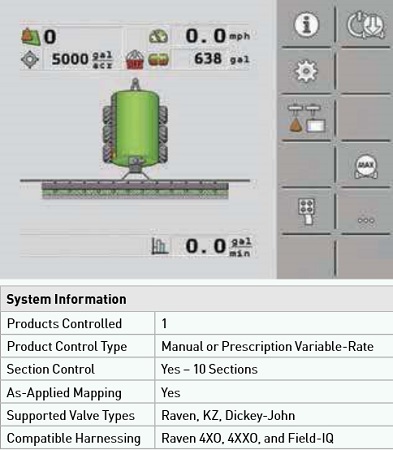

Slurry Application System:

ISOBUS Slurry Application System gives you full control of your slurry tanker. Whether you wish to use section control for two booms or 10, this application system has you covered.

Viewable Parameters

  • Speed, gallons/acre, tank level
  • Virtual tank gauge
  • Application rate

Additional Functionality

  • Application counters, tramlines

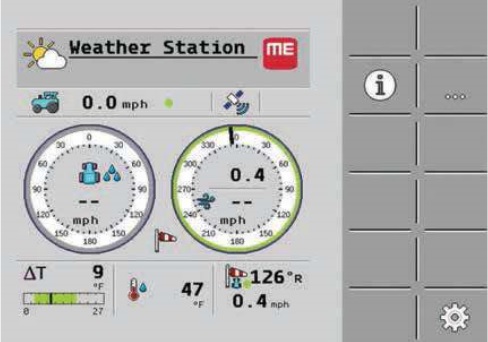

ISOBUS Weather Station:

Be prepared for whatever mother nature has planned by monitoring live weather parameters from the comfort of your cab. The Weather System Kit is the first ISOBUS weather station on the market. It features a simple plug n’ play installation process and a maintenance-free design without moving parts for added reliability. Not only does this station give you weather readouts, it will also recommend the fertilizer droplet size given the current weather pattern.

Viewable Parameters

  • True and apparent wind speed and direction
  • Temperature
  • Relative air humidity
  • Barometric pressure
  • Machine roll and pitch
  • Delta T

This is an All-Makes Compatible Product:

Compatible with:

  • Displays: Intelliview IV, John Deere 2630, John Deere Generation 4, Mueller TOUCH800, Ag Leader Integra

For more information about the New Holland PLM ISOBUS Product Control, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
