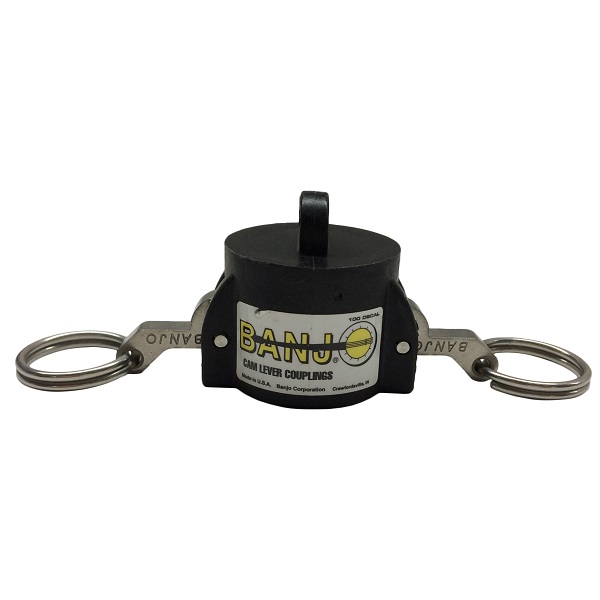

Banjo 3/4″ Cap X 3/4″ Male Adapter Poly Cam Lever Coupling Part # 075CAP

Description

Banjo poly cam lever coupling cap 1/2″ x 3/4″ part # 075CAP.

Features and Benefits:

• BSP threads available 1″- 3″ sizes (excluding 1¼”).
• Complete series of ½”, ¾”, 1″, 1¼”, 1½”, 2″, 3″ and 4″ NPT thread.
• Durable — Polypropylene is glass filled for rugged strength and durability.
• Economical and superior in performance.
• Most complete line of polypropylene couplings available.
• Operating conditions: –3/8″ thru 2″ — 100 P.S.I. at 0°F; 125 P.S.I. at 70°F; 70 P.S.I. at 150°F. –2½”, 3″ &4″ Cap-50 P.S.I.; Couplings 75 P.S.I. max.
• Precision molded — insures a uniform and accurate fit.
• Smooth operating — finger rings are designed for easy opening of cam levers.
• Stainless steel rings, arms & pins.
• Standard with EPDM gaskets. Buna “N”, and FKM (viton type) also available.
• Versatile — interchangeable with all types of cam lever couplers.
• WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
