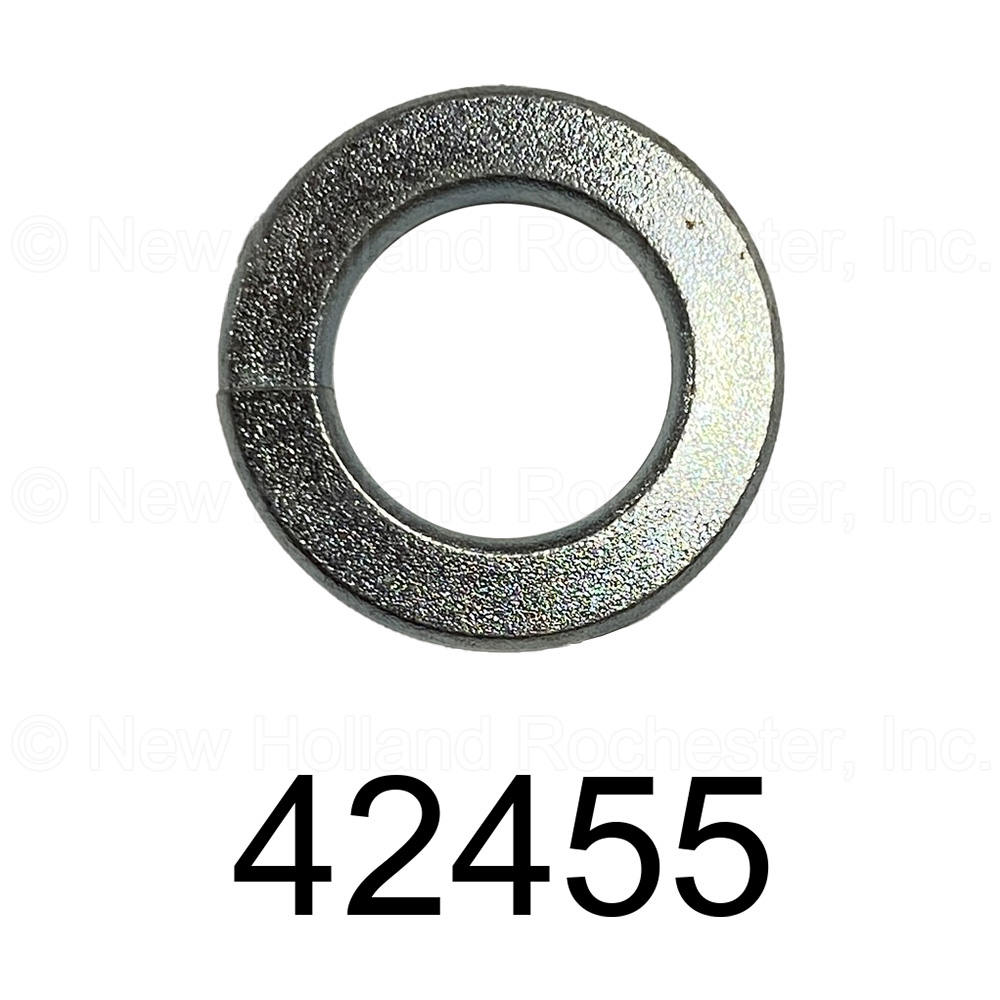

M10 Screw 10.2mm ID Grade 8 Spring Steel Metric Split Lock Washer
Specifications
| Washer Type | Spring Lock |
| Screw Size | M10 |
| Material | Spring Steel |
| Inside Diameter (mm) | 10.20 |
| Outside Diameter (mm) | 18.10 |
| Thickness (mm) | 2.20 |
| Hardness | 44-51 HRC |
| Material Grade | 8 |
| Military Specification | Does Not Meet Military Specifications |
| Standards | BS; ASME; JIS; DIN; NFE; ANSI |
| Minimum Inside Diameter (mm) | 10.20 |
| Maximum Inside Diameter (mm) | 10.70 |
| Minimum Outside Diameter (mm) | 18.10 |
| Maximum Outside Diameter (mm) | 18.10 |
| Maximum Thickness (mm) | 2.20 |
| Fastener Standard | DIN 127 |
| System Of Measurement | Metric |
| Finish Coating | Zinc |
| UNSPSC Code | 31161801 |
