Product

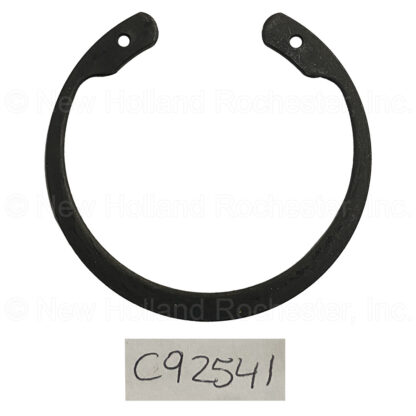

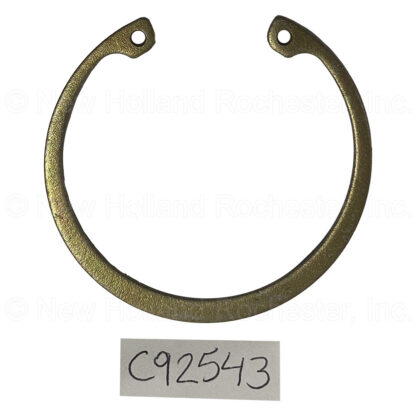

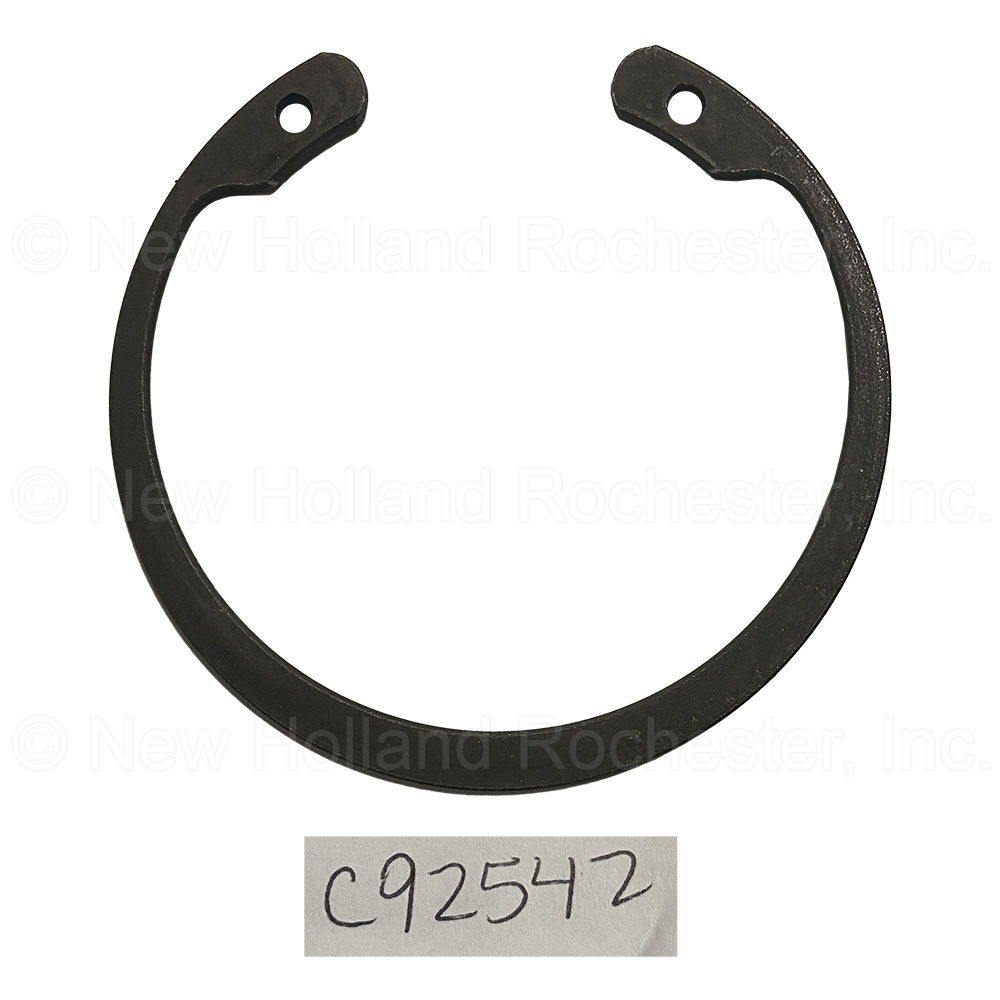

2-1/2″ Bore Diam, 2-1/2″ Nom’l Size, Spring Steel Internal Snap Retaining Ring
2.775″ Free OD, 0.086″ Groove Width x 0.074″ Groove Depth, 0.078″ Ring Thickness
Specifications
| Ring Type | Snap |
| Groove Diameter | 2.648 in |
| Groove Diameter Tolerance | -0.0060 to 0.0060 in |
| Free Outside Diameter | 2.775 |
| Bore Diameter | 2.5 in |
| Material | Spring Steel |
| Material Grade | 1060/1090 |
| Finish | Phosphate |
| Inside Diameter | 1.68 in |
| Groove Width | 0.086 in |
| Groove Depth | 0.074 in |
| Ring Thickness | 0.078 in |
| Military Specification | Does Not Meet Military Specifications |
| UNSPSC Code | 31163202 |
