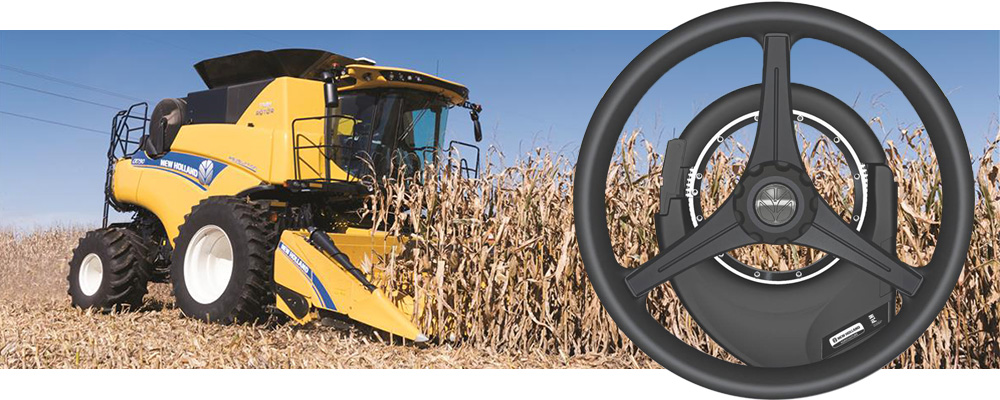

New Holland IntelliSteer Lite

The New Holland IntelliSteer Lite universal steering motor works with the IntelliView III or IntelliView IV display to provide an assisted steering solution for a variety of new and legacy New Holland equipment as well as other brand vehicles.


  • Custom mounting kits tailored for each specific supported vehicle
  • Operating speeds: 1.0 to 15+ MPH
  • Reverse operation


  • Easy installation utilizing existing steering wheel
  • Easily transfers from vehicle to vehicle with available transfer kit
  • Common user interface and precision farming functions such as PLM IntelliSteer
  • Meets OEM performance and durability requirements

Motor Drive Unit (MDU)

  • High-torque, positive-gear drive delivers whisper-quiet operation
  • High-speed motor provides quick correction response
  • Manual switch quickly engages or disengages for road transport
  • Split-ring assembly design allows for installation and removal

Electronic Control Unit (ECU)

  • Onboard compass to determine vehicle heading and allows for reverse operation

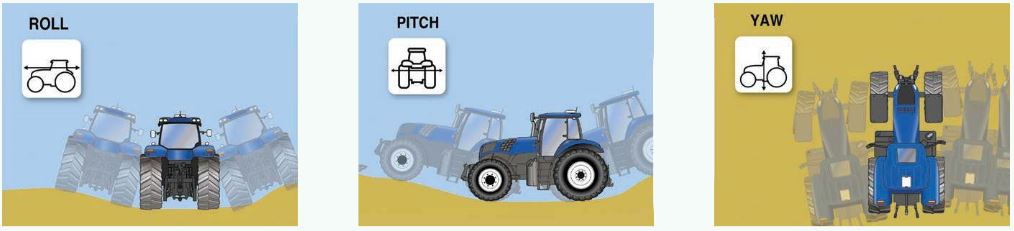

  • Built-in inertial measurement unit to measure roll/pitch/yaw terrain compensation

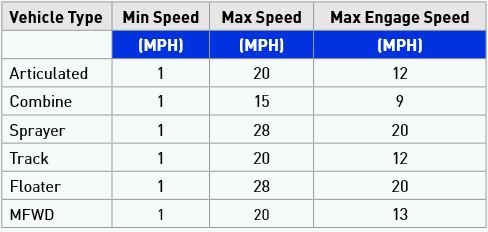

IntelliSteer Lite Minimum / Maximum Speeds

Easy Installation

  • Minimal vehicle modification necessary for a quick and seamless installation
  • Custom mounting kits tailored for each specific supported vehicle
  • No need to remove or replace steering wheel
  • Available switch kit allows transfer from vehicle to vehicle in minutes


  • Supports a variety of New Holland makes and models, as well as many competitive vehicles
  • For more information regarding machine compatibility, please contact us.

Receiver Compatibility

  • The IntelliSteer Lite is compatible with the Cygnus-A, the NH 372, and the NH 262 receivers
  • Upgradeable to medium and high accuracy
  • Choice of correction signals:
    NH 372/262: PLM RTK+, RTK, RTX, OmniSTAR, WAAS
    Cygnus-A: PLM RTK+, PLM 1, PLM 2, WAAS

This is an All-Makes Compatible Product:

Compatible with:

Receivers: PLM Cygnus-A, New Holland 372, New Holland 262

Displays: Intelliview IV, Intelliview III

*Not compatible with IntelliSteer all-makes

For more information about the New Holland IntelliSteer Lite, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
