New Holland RTK Connectivity Options

We have several RTK connectivity devices available:

AG-715 RTK Radio

The AG-715 integrated radio was designed exclusively for use with the NH 372 GNSS receiver, providing access to high-precision CenterPoint™ RTK networks:

  • The compact AG-715 design mounts easily under the NH 372 GNSS receiver
  • Available in 900, 430-450, and 450-470 MHz frequency ranges

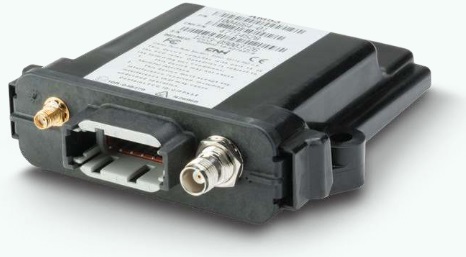

AM-53 Modem

The AM-53 Modem transports NTRIP correction data via cellular from a correction source such as the PLM RTK+ network or other CORS/VRS service:

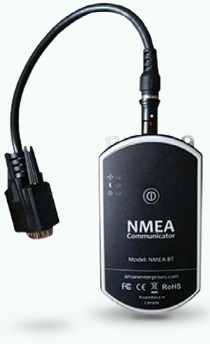

NMEA-BT Bluetooth Device

The NMEA-BT Device connects compatible NH 372 receivers via Bluetooth® to your iOS device such as an iPhone® or iPad®, allowing the utilization of the cellular data from that device to provide cellular NTRIP RTK corrections such as PLM RTK+
to the receiver:

  • Free NTRIP/RTK client app for iOS
  • Use the cellular provider of your choice
  • Long-range Bluetooth – over 100M operating range between NMEA-BT Device and iOS device
  • Supports data transfer rates up to 115.2 Kbps

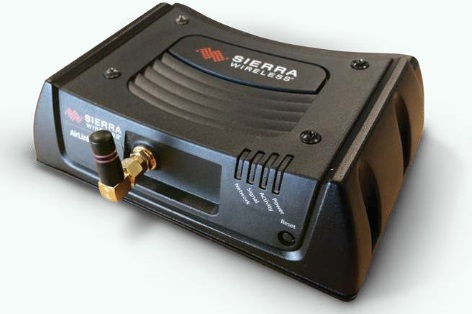

GX450 WiFi Modem

With 4G/LTE support and 3G backup, the GX450 Modem provides excellent connectivity for cellular RTK corrections.

Features

  • 4G/LTE compatible with Verizon, AT&T®, Sprint®, T-Mobile® USA, US Cellular®, Rogers, Bell, Telus carriers
  • 2.4 GHz WiFi providing access for up to 8 clients simultaneously
  • PLM RTK+ compatible
  • LED lights for simple diagnostics of power, activity, signal, and network

Advantages

  • Bring your own data plan, giving you the flexibility to choose the plan that best fits your operation
  • Use the built-in WiFi with Vehicle Sync to easily share data between vehicles (XCN-2050™ and FM-1000™ displays only)
  • The compact size allows the GX450 to be easily mounted in the vehicle cab • Easily configurable through the IntelliView IV when used with the NH 372 GNSS receiver

Compatibility

These are All-Makes Compatible Products:

Compatible with:

Displays: Intelliview IV, XCN-2050™, XCN-1050™, FM-1000™, FM-750™

Receivers: New Holland 372

For more information about Precision Land Management (PLM) RTK connectivity devices, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
